SHH-B2 Auto Corrugated Folder Gluer Machine

Descriptions:

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.perfectly combing the requirements of auto packaging together.

Name

SHH-B2 Auto Corrugated folder gluer machine

Model型号

SHH-1050/1250/1450/1650/1850/2050B2

Paper Material

Cardboard 200-800g A/B/C/E/F-flute

Max. Liner speed

Max. 220 meter/minute

Feeding way

Automatically and continuously feeding

Way of folding

Fold 2 and fold 4 are 180°

Glue Material

Water-base cold glue

Electric power

7-9KW  380V 50HZ 3P

Weight

2600(2800)(3000)(3200)(3400)(3600)KG

Over dimension

10000 x1600 (1800)(2000)(2200)(2400)(2600)x 1400mm



Feature introduction

shh b2 auto corrugated folder gluer machine 3

Feeding



Adjustable feeding belts to ensure easy adjustment,

stable and smoothly feeding.



Continuously Variable Speeder to ensure feeding

internal and stable transmission.



One-touch Pneumatic knife, easy for the

adjustment of feeding belts.

Folding



Lengthened folding to avoid the unevenness

while the rapid forming of cartons and make

it come to perfection.

shh b2 auto corrugated folder gluer machine 4

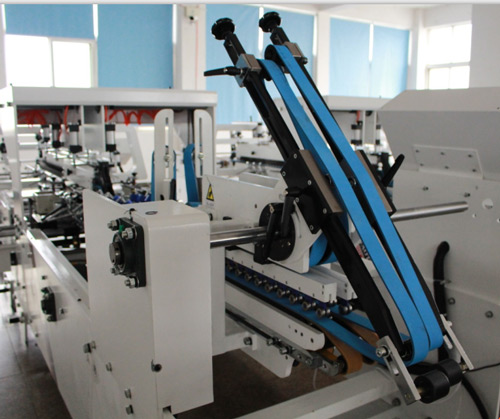

shh b2 auto corrugated folder gluer machine 5

Full pressing



2-board structure



Two modes for pressing belt speeding:



Auto: set distance between boxes, pressing

belt speed is the same as the machine,

belt removes while sensor detect it.



Manual: pressing belt conveys in a fixed speed

and machine speed will not put any effect on it.



With counting device to count the finished

boxes to match with  boxes regulating, easy

to count and pack.

Transmission



Equipped with feeding paper inspection device.



Equipped with impacting device to press the paper

after accounting and make it easy to pack paper.

shh b2 auto corrugated folder gluer machine 6

Options patting part

shh b2 auto corrugated folder gluer machine 7



Samples

Common box type and size:(mm)

shh b2 auto corrugated folder gluer machine 8

Model

1050B2

1250B2

1450B2

1650B2

1850B2

2050B2

A

150-800

150-800

150-800

150-800

150-800

150-800

B

200-900

200-1100

200-1300

200-1500

200-1700

200-1900

C

Min:15

Min:15

Min:15

Min:15

Min:15

Min:15

D

Min:120

Min:120

Min:120

Min:120

Min:120

Min:120

F

Min:100

Min:100

Min:100

Min:100

Min:100

Min:100



The patting size:(mm)

shh b2 auto corrugated folder gluer machine 9

Model

1050B2

1250B2

1450B2

1650B2

1850B2

2050B2

A

150-800

150-800

150-800

150-800

150-800

150-800

B

280-900

280-1100

280-1300

280-1500

280-1700

280-1900

C

Min:15

Min:15

Min:15

Min:15

Min:15

Min:15

D

Min:120

Min:120

Min:120

Min:120

Min:120

Min:120

F

Min:100

Min:100

Min:100

Min:100

Min:100

Min:100



shh b2 auto corrugated folder gluer machine 10shh b2 auto corrugated folder gluer machine 11
