Descriptions:

SHH-E full-auto corrugated bottom-lock box gluer, with three-plate tracking. The bottom-lock part in reversible bracket cuts box-bottom folding/switching time, being efficient & practical.



Name

SHH-E Automatic Corrugated lock bottom Folder Gluer Machine

Model

SHH-1050/1250/1450/1650/1850/2050E

Paper Material

Cardboard 200-800g A/B/C/E/F-flute

Max. Liner speed

Max. 220 meter/minute

Feeding way

Automatically and continuously feeding

Way of folding

Fold 2 and fold 4 are 180°

Glue Material

Water-base cold glue

Electric power

11.5KW         15KW      380V 50HZ 3P

Weight

3800(4200)(4600)(5000)(5400)(5800)KG

Over dimension

14000 x1600 (1800)(2000)(2200)(2400)(2600)x 1400mm



Feature introduction

shh e automatic corrugated lock bottom folder gluer machine 3

Feeding



Adjustable feeding belts to ensure easy adjustment,

stable and smoothly feeding.



Continuously Variable Speeder to ensure feeding

internal and stable transmission.



One-touch Pneumatic knife, easy for the adjustment of feeding belts.

Alignment



Alignment section, which automatically corrects the box

after it is ejected from the paper feed section.

shh e automatic corrugated lock bottom folder gluer machine 4

shh e automatic corrugated lock bottom folder gluer machine 5

Bottom-lock



3-board tracking structure, upper gluer can make bottom-locked box

automatic gluing and forming, can be used for the special-shaped cartons.



The entire bottom-lock part is installed in a reversible bracket,

substantially reduce the swap adjustment time of bottom-fold

box and the other types of box.



Bottom-folding speed is 50-200 pcs per min, stable and reliable.

Folding



Lengthened folding to avoid the unevenness while the rapid

forming of cartons and make it come to perfection.

shh e automatic corrugated lock bottom folder gluer machine 6

shh e automatic corrugated lock bottom folder gluer machine 7

Full pressing



With counting device to count the finished boxes to match

with  boxes regulating, easy to count and pack.

Transmission



Equipped with feeding paper inspection device.



Equipped with impacting device to press the paper

after accounting and make it easy to pack paper.

shh e automatic corrugated lock bottom folder gluer machine 8

shh e automatic corrugated lock bottom folder gluer machine 9

The Grinding part



More effective treatment of paper surface UV,

the carton adhesive more stronger

touchscreen



The machine adapt touchscreen adjustment, fast to adjust

shh e automatic corrugated lock bottom folder gluer machine 10

Machine Optional configuration list

Optional Spraying System (water-base cold)



For irregular box,

Need Extra Spraying System.

Equipped with three guns, convenient in the production

various special box, gluing quickly and accurately sizing.

(Options: customized on user order)

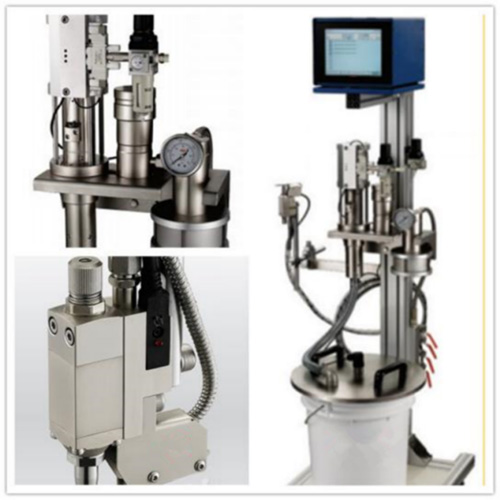

Optional hot melt system



The tank less hot melt system is designed for melting

and pumping of thermoplastic hot melt in granulate form.

It gently melts on demand and therefore is applicable for

both high and low glue consumption applications. Optional

volume control monitors changes in adhesive consumption.

Thanks to the fast heat-up time of 16 minutes to 160 °C the

Concept Stream is quickly operational. In addition, the adhesive

system achieves a high melting rate performance of 8 kg/h or

15 kg/h with minimum space.

Optional Plasma system



Through surface coating treatment,to strengthen the

adherence and make cartons easier to be glued.

Optional Buffer



Independent buffer with our design, greatly increase production

efficiency and pass rate.



Samples

Flat box type and size :(mm)

shh e automatic corrugated lock bottom folder gluer machine 11

Model

1050E

1250E

1450E

1650E

1850E

2050E

A+B+C+D

200-1000

200-1200

200-1400

200-1600

280-1800

280-2000

C+D Min

100

100

100

100

140

140

D Min

25

25

25

25

25

25

F Min

100

100

100

100

100

100

G

150-800

150-800

150-800

150-800

150-800

150-800



Lock bottom carton type and size:(mm)

shh e automatic corrugated lock bottom folder gluer machine 12

Model

1050E

1250E

1450E

1650E

1850E

2050E

A+B+C+D

250-950

250-1150

250-1350

250-1550

380-1750

380-1950

C+D Min

125

125

125

125

190

190

D Min

25

25

25

25

25

25

F Min

100

100

100

100

100

100

G

150-800

150-800

150-800

150-800

150-800

150-800

H Min

30

30

30

30

30

30

shh e automatic corrugated lock bottom folder gluer machine 14shh e automatic corrugated lock bottom folder gluer machine 15
