YZHH Automatic Pre-fold Folder Gluer Machine

YZHH  Automatic Pre-fold Folder Gluer Machine
YZHH  Automatic Pre-fold Folder Gluer Machine

Descriptions:

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box.

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.

Name

YZHH Auto Pre-fold folder gluer machine

Model型号

YZHH-600/800

Paper Material

Cardboard 200-800g E-fluteE /F-fluteF

Max. Liner speed

Max. 220 meter/minute 米/分钟

Feeding way

Automatically and continuously feeding

Way of folding

Fold 1 and fold 3 are 180°and 135°

Fold 2 and fold 4 are 180°

Glue Material

Water-base cold glue

Electric power

5KW  380V 50HZ  3P

Weight

1800(2000)KG

Over dimension

8200 x1100(1300) x 1400mm



Feature introduction

yzhh automatic pre fold folder gluer machine 3

Feeding



5-6pcs Adjustable feeding belts to ensure easy adjustment,

stable and smoothly feeding.



Continuously Variable Speeder to ensure feeding internal

and stable transmission.



One-touch Pneumatic knife, easy for the adjustment

of feeding belts.

Pre-fold



Double-board structure with a set of pre-folding knife.

Pre-fold angle is 135°, especially suitable for small but

high cartons, more satisfactory while rapid prototyping.

yzhh automatic pre fold folder gluer machine 4

yzhh automatic pre fold folder gluer machine 5

Alignment (Options)



Alignment section, which automatically corrects

the box after it is ejected from the paper feed section.

Folding



Lengthened folding to avoid the unevenness while the

rapid forming of cartons and make it come to perfection.



yzhh automatic pre fold folder gluer machine 6

yzhh automatic pre fold folder gluer machine 7

Full pressing



2-board structure



Two modes for pressing belt speeding:



Auto: set distance between boxes, pressing

belt speed is the same as the machine,

belt removes while sensor detect it.



Manual: pressing belt conveys in a fixed speed

and machine speed will not put any effect on it.



With counting device to count the finished

boxes to match with  boxes regulating,

easy to count and pack.

Transmission



Equipped with feeding paper inspection device.



Equipped with impacting device to press the

paper after accounting and make it easy to pack paper.

yzhh automatic pre fold folder gluer machine 8



Samples

Common box type and size:

yzhh automatic pre fold folder gluer machine 9

Model

YZHH-600

YZHH-800

Paper type

Cardboard

E/F Corrugated

Cardboard

E/F Corrugated

A

70-700mm

150-580mm

70-700mm

150-580mm

B

120-580mm

180-480mm

120-780mm

180-680mm

C

Min:10mm

Min:15mm

Min:10mm

Min:15mm

D

Min:50mm

Min:120mm

Min:50mm

Min:120mm

F

Min:50mm

Min:50mm

Min:50mm

Min:50mm



Two-side gluing box type and size:

yzhh automatic pre fold folder gluer machine 10

Model

YZHH-600

YZHH-800

A

100-450mm

100-450mm

B

100-500mm

100-700mm

C

70-400mm

70-600mm

D

10-100mm

10-200mm

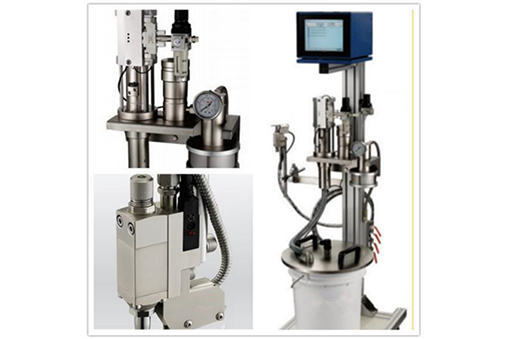

Note:Options customized on user order the cold glue guns system



yzhh automatic pre fold folder gluer machine 11yzhh automatic pre fold folder gluer machine 12
