SHH-AG Automatic Pre-fold and Lock Bottom Folder Gluer Machine

folder gluer machine
folder gluer machine

Name

SHH-AG  Auto Pre-fold & lock bottom folder gluer machine

Model

SHH-600/800AG

Paper Material

Cardboard 200-800g E-fluteE/F-fluteF

Max. Liner speed

Max. 220 meter/minute

Feeding way

Automatically and continuously feeding

Way of folding

Fold 1 and fold 3 are 180°and 135°

Fold 2 and fold 4 are 180°

Bottom folded and glued

Glue Material

Water-base cold glue

Electric power

7.5KW  380V 50HZ  3P

Weight

3000(3200)KG

Over dimension

11000 x1100 (1300)x 1400mm

Descriptions:

This machine is specially used for paperboard shaping and adhesive processing after cutting horizontally. Its universality is strong and suitable scope is wide, which can fold and paste various straight seaming box and bottom edging box.

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and glue for all kinds of bottom-locked cartons.Pre-fold section is applied to auto packaging, fold 1 and fold 3 of all cartons can reach 180° and 135° ,perfectly combing the requirements of auto packaging together.



Feature introduction

shh ag automatic pre fold and lock bottom folder gluer machine 3

Feeding



Adjustable feeding belts to ensure easy adjustment,

stable and smoothly feeding.



Continuously Variable Speeder to ensure feeding internal

and stable transmission.



One-touch Pneumatic knife,

easy for the adjustment of feeding belts.

Pre-fold



Double-board structure with a set of pre-folding knife.



Pre-fold angle is 180°and 135°, especially suitable for small

but high cartons, more satisfactory while rapid prototyping

shh ag automatic pre fold and lock bottom folder gluer machine 5

shh ag automatic pre fold and lock bottom folder gluer machine 6

Bottom-lock



3-board tracking structure, upper gluer can make

bottom-locked box automatic gluing and forming,

can be used for the special-shaped cartons.



The entire bottom-lock part is installed in a reversible bracket,

substantially reduce the swap adjustment time of

bottom-fold box and the other types of box.



Bottom-folding speed is 50-200 pcs per min, stable and reliable.

Folding



Lengthened folding to avoid the unevenness while the

rapid forming of cartons and make it come to perfection.

shh ag automatic pre fold and lock bottom folder gluer machine 7

shh ag automatic pre fold and lock bottom folder gluer machine 8

Full pressing



With counting device to count the finished boxes to

match with boxes regulating, easy to count and pack.

Transmission



Equipped with feeding paper inspection device.



Equipped with impacting device to press the paper

after accounting and make it easy to pack paper.

shh ag automatic pre fold and lock bottom folder gluer machine 9

The Grinding part



More effective treatment of paper surface UV,

the carton adhesive more stronger

touchscreen



The machine adapt touchscreen adjustment,

fast to adjust



Machine Optional configuration list

Optional Alignment

Alignment section, which automatically corrects

the box after it is ejected from the paper feed section

Optional Spraying System (water-base cold)

For irregular box,

Need Extra Spraying System.

Equipped with three guns, convenient in the production

various special box, gluing quickly and accurately sizing.

(Options: customized on user order)

Optional hot melt system

The tank less hot melt system is designed for melting

and pumping of thermoplastic hot melt in granulate

form. It gently melts on demand and therefore is

applicable for both high and low glue consumption

applications. Optional volume control monitors changes

in adhesive consumption. Thanks to the fast heat-up time

+of 16 minutes to 160 °C the Concept Stream is quickly

operational. In addition, the adhesive system achieves a

high melting rate performance of 8 kg/h or 15 kg/h with minimum space.

Optional Plasma system

Through surface coating treatment,to strengthen the

adherence and make cartons easier to be glued.

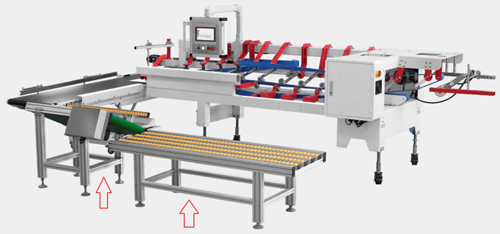

Optional Box collection device

The machine reduces labor intensity,

 saves manpower, improves the working efficiency of the folder gluer machine,

and can make the performance of the folder gluer machine fully play.

Optional banding Machine

The machine reduces labor intensity,

saves manpower, improves the working efficiency of

the folder gluer machine,

and can make the performance of the folder gluer machine fully play.

Samples



Common box type and size(MM)

shh ag automatic pre fold and lock bottom folder gluer machine 10

Model

SHH-600AG

SHH-800AG

Paper type

Cardboard

Cardboard

Corrugated

A+B+C+D

100-580

150-780

180-680

C+D Min

50

75

90

D Min

8

8

8

F Min

F Min

F Min

F Min

G

70-700

70-700

150-580



Lock bottom carton type and size(mm)

shh ag automatic pre fold and lock bottom folder gluer machine 11

Model

SHH-600AG

SHH-800AG

Paper type

Cardboard

Cardboard

Corrugated

A+B+C+D

200-550

200-750

200-750

C+D Min

100

100

100

D Min

25

25

25

F Min

70

70

70

G

150-600

150-600

150-580

H

25

25

25



shh ag automatic pre fold and lock bottom folder gluer machine 13shh ag automatic pre fold and lock bottom folder gluer machine 14
