SHH-E Export Auto High Speed Lock Bottom Corrugated Folder Gluer Machine

SHH-E Export Auto High Speed Lock Bottom Corrugated Folder Gluer Machine
SHH-E Export Auto High Speed Lock Bottom Corrugated Folder Gluer Machine
SHH-E Export Auto High Speed Lock Bottom Corrugated Folder Gluer Machine

Descriptions

SHH-E Series Corrugated folder gluer machine,adapt electrical plate adjustment,PLC and imported electronic components,feeding section adopts independent electrical control,operation on rail with stable performance and easy to control and operate.This machine is specilized for cardboard and corrugated cartons,its correction fuction make corrugated cartons perfectly meeting the requirments of packing industry.(We can customize for other sizes.)

Model 1250E EXPORT 1450E EXPORT 1650E EXPORT 1850E EXPORT 2050E EXPORT
Max .Liner speed 280m/min 280m/min 280m/min 280m/min 280m/min
Applicable paper materials 200-800g cardboard A/B/E/F tile (five layers)
Way of folding in reverse The first and third folds are 180°90° respectively, the second and fourth folds are 180°
Glue Material Solute type Solute type Solute type Solute type Solute type
Electric power 3P 380V 50HZ 3P 380V 50HZ 3P 380V 50HZ 3P 380V 50HZ 3P 380V 50HZ
Main power 11.5KW 15KW 15KW 15KW 15KW
Weight 8T 8.5T 9T 9.5T 10T
Over dimension 14.5x2x1.7m 14.5x2.2x1.7m 14.5x2.4x1.7m 14.5x2.6x1.7m 14.5x2.8x1.7m



Feature introduction

shh e export auto high speed lock bottom corrugated folder gluer machine 3

Feeding



Adjustable feeding belts to ensure easy
adjustment, stable and smoothly feeding.

Continuously Variable Speeder to ensure
feeding internal and stable transmission.

One-touch Pneumatic knife, easy for
the adjustment of feeding belts.

Alignment

Alignment section, which automatically
corrects the box after it is ejected from
the paper feed section

shh e export auto high speed lock bottom corrugated folder gluer machine 4

shh e export auto high speed lock bottom corrugated folder gluer machine 5

Bottom-lock

3-board tracking structure, upper gluer can make
bottom-locked box automatic gluing and forming,
can be used for the special-shaped cartons.

The entire bottom-lock part is installed in
a reversible bracket, substantially reduce the
swap adjustment time of bottom-fold box
and the other types of box.

Bottom-folding speed is 50-200 pcs per min,
stable and reliable.





shh e export auto high speed lock bottom corrugated folder gluer machine 6

Folding

Lengthened folding to avoid the
unevenness while the rapid forming
of cartons and make it come to
perfection.

Full pressing

2-board structure

Two modes for pressing belt speeding:

Auto: set distance between boxes,
pressing belt speed is the same as
the machine, belt removes while
sensor detect it.

Manual: pressing belt conveys in a fixed
speed and machine speed will not put
any effect on it.

With counting device to count the finished
boxes to match with  boxes regulating,
easy to count and pack.

shh e export auto high speed lock bottom corrugated folder gluer machine 7

shh e export auto high speed lock bottom corrugated folder gluer machine 8

Transmission

Equipped with feeding
paper inspection device.

Equipped with impacting device to press
the paper after accounting and make
it easy to pack paper.

Options patting part

shh e export auto high speed lock bottom corrugated folder gluer machine 9

shh e export auto high speed lock bottom corrugated folder gluer machine 10

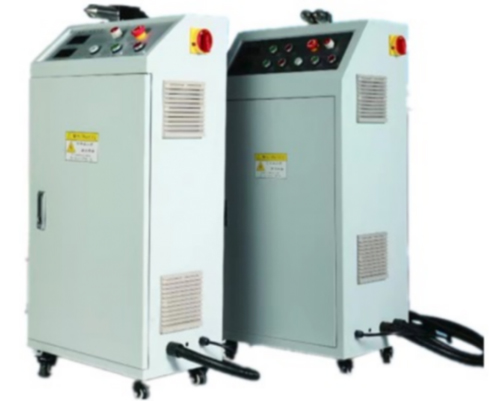

Auto motor adjust

The machine adapt electrical
plate adjustment,fast to adjust

shh e export auto high speed lock bottom corrugated folder gluer machine 11

PLC touchscreen

The machine adapt touchscreen
adjustment, fast to adjust

CCTV monitors

The machine adapt CCTV monitors
could see machine product

shh e export auto high speed lock bottom corrugated folder gluer machine 12



Samples

Model 1050FS EXPORT 1250FS EXPORT 1450FS EXPORT 1650FS EXPORT 1850FS EXPORT 2050FS EXPORT
Carton type Jam/ (A/B/E tile) Jam/ (A/B/E tile) Jam/ (A/B/E tile) Jam/ (A/B/E tile) Jam/ (A/B/E tile) Jam/ (A/B/E tile)
A+B+C+D+E 290-1000mm 290-1200mm 290-1400mm 290-1600mm 290-1800mm 290-2000mm
B+C Min 80mm 80mm 80mm 140mm 140mm 140mm
B Min 80mm 80mm 80mm 80mm 80mm 80mm
C Min 30mm 30mm 30mm 30mm 30mm 30mm
D Min 70mm 70mm 70mm 70mm 70mm 70mm
F 70-800mm 70-800mm 70-800mm 70-800mm 70-800mm 70-800mm
G Max 800mm 800mm 800mm 800mm 800mm 800mm
H Min 10mm 10mm 10mm 10mm 10mm 10mm
L 25-100mm 25-100mm 25-100mm 25-100mm 25-170mm 25-170mm



Model 1250E EXPORT 1450E EXPORT 1650E EXPORT 1850E EXPORT 2050E EXPORT
Carton type Jam/ (A/B/E tile) Jam/ (A/B/E tile) Jam/ (A/B/E tile) Jam/ (A/B/E tile) Jam/ (A/B/E tile)
A+B+C+D  250-1150mm 250-1350mm 250-1550mm 250-1750mm 250-1950mm
C+D Min 125mm 125mm 125mm 190mm 190mm
D Min 25mm 25mm 25mm 25mm 25mm
F Min 100mm 100mm 100mm 100mm 100mm
G 150-800mm 150-800mm 150-800mm 150-800mm 150-800mm
H Min 30mm 30mm 30mm 30mm 30mm



Lock bottom carton type and folded box size:(mm)

shh e export auto high speed lock bottom corrugated folder gluer machine 13

Model

1250E

1450E

1650E

1850E

2050E

A

280-800

280-800

280-800

280-800

280-800

B

250-1080

250-1280

250-1480

250-1680

250-1880

C

Min:15

Min:15

Min:15

Min:15

Min:15

D

Min:150

Min:150

Min:150

Min:150

Min:150

F

Min:120

Min:120

Min:120

Min:120

Min:120



Common box type and size:(mm) shh e export auto high speed lock bottom corrugated folder gluer machine 14

Model

1250E

1450E

1650E

1850E

2050E

A

200-800

200-800

200-800

200-800

200-800

B

200-1100

200-1300

200-1500

200-1700

200-1900

C

Min:15

Min:15

Min:15

Min:15

Min:15

D

Min:150

Min:150

Min:150

Min:150

Min:150

F

Min:120

Min:120

Min:120

Min:120

Min:120



Flat box type and size:(mm) shh e export auto high speed lock bottom corrugated folder gluer machine 17
Model

1250E

1450E

1650E

1850E

2050E

A

200-800

200-800

200-800

200-800

200-800

B

200-1100

200-1300

200-1500

200-1700

200-1900

C

Min:15

Min:15

Min:15

Min:15

Min:15

D

Min:150

Min:150

Min:150

Min:150

Min:150

F

Min:120

Min:120

Min:120

Min:120

Min:120



Example

shh e export auto high speed lock bottom corrugated folder gluer machine 15shh e export auto high speed lock bottom corrugated folder gluer machine 16



Workshop

shh e automatic corrugated lock bottom folder gluer machine 16shh e automatic corrugated lock bottom folder gluer machine 17
